Applications and Uses of FRP Fiberglass Grating Across Industries

Where Is FRP Grating Used? Industry Applications and Case Examples

FRP (Fiberglass Reinforced Plastic) grating has transformed industrial infrastructure across dozens of sectors. Its unique combination of corrosion resistance, lightweight construction, and anti-slip safety makes it the preferred flooring and structural material for the world’s most demanding environments. Below, we examine each major application sector in detail.

1. Chemical Processing and Petrochemical

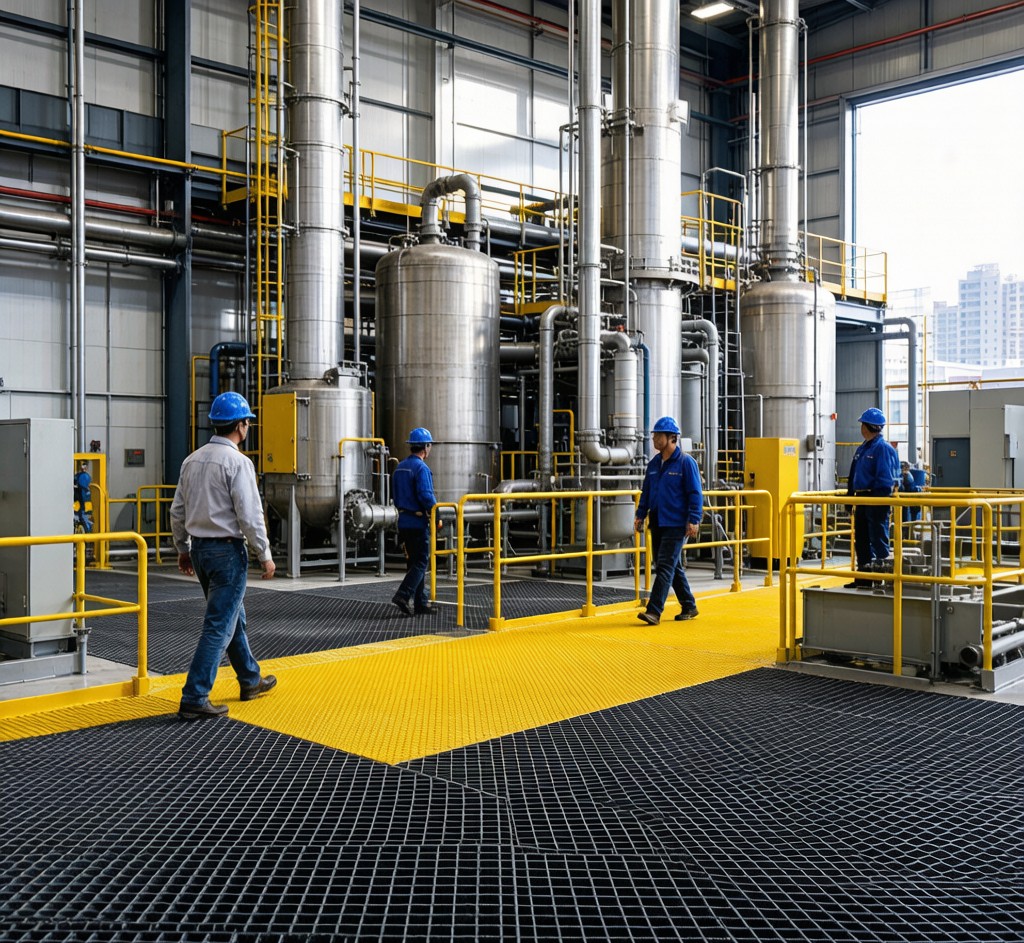

Chemical plants represent the single largest market for FRP grating, and for good reason — these facilities continuously expose flooring and platforms to aggressive acids, caustic solutions, and solvent vapors that would destroy steel grating within months. FRP grating provides permanent corrosion immunity in these environments.

Applications: Operating platforms, pipe racks, walkways between process units, splash zone decking, trench covers over chemical drains
Resin recommendation: Vinyl ester for broad chemical resistance; phenolic where fire risk is elevated
Surface: Grit-top for slip safety on wet chemical-wetted surfaces
Typical span: 0.6m to 1.2m between supports

2. Water and Wastewater Treatment

Municipal and industrial water treatment facilities subject infrastructure to constant moisture, chlorine compounds, and biological agents. FRP grating thrives in these wet, corrosive conditions where steel rusts and wood rots. It is widely used in both potable water plants and sewage treatment works.

Applications: Walkways over treatment tanks, clarifier bridges, filter gallery flooring, chemical dosing platform decking, odor control enclosure access platforms
Resin recommendation: Isophthalic polyester (standard); vinyl ester for chlorine-rich areas
Surface: Grit-top or concave — both provide excellent wet slip resistance
Advantage: Zero water absorption, no biological degradation

3. Marine, Offshore, and Shipbuilding

Saltwater is one of the most aggressive corrosive agents known. Traditional steel structures on docks, piers, and offshore platforms require constant maintenance to combat rust. FRP grating, especially phenolic-based, offers a permanent solution certified to international marine standards.

Applications: Offshore platform decking, helicopter landing pads, escape route walkways, pipe rack flooring, dock fender access, gangways, ship deck grating, ballast tank covers
Resin recommendation: Phenolic (fire-critical areas); vinyl ester (general marine)
Certifications: IMO FTP Code, USCG approval, ABS/DNV classification
Critical feature: Fire resistance + zero corrosion in salt spray

4. Power Generation

Power plants — whether fossil fuel, nuclear, or renewable — contain diverse environments ranging from wet cooling towers to high-temperature turbine halls. FRP grating’s electrical non-conductivity adds a critical safety dimension in electrical areas.

Applications: Transformer yard walkways, battery room flooring, cable trench covers, cooling tower access platforms, scrubber system walkways, flue gas desulfurization platforms, ash handling areas
Key benefit: Non-conductive — eliminates shock hazard in electrical switchyards
Resin recommendation: Vinyl ester for FGD environments; phenolic near ignition sources
Additional advantage: Non-magnetic — suitable for MRI and sensitive equipment rooms in nuclear facilities

5. Oil and Gas (Onshore and Offshore)

The oil and gas industry operates in some of the world’s harshest environments — from Arctic cold to desert heat, from offshore salt spray to refinery acid atmospheres. FRP grating’s broad temperature tolerance and chemical resistance make it the default choice for critical access infrastructure.

Applications: Refinery operating platforms, LNG facility walkways, tank farm access, drilling rig decking, mud pit covers, pipe bridge walkways
Resin recommendation: Phenolic for offshore; vinyl ester for refinery chemical zones
Temperature range: -40°C to +150°C depending on resin system

6. Food and Beverage Processing

Hygiene is paramount in food production. FRP grating with a concave or covered surface resists bacterial growth, withstands frequent washdown with hot water and cleaning chemicals, and meets USDA and FDA requirements for food contact zones. It does not harbor pathogens like porous materials.

Applications: Production floor platforms, washdown area decking, bottling line walkways, meat and poultry processing floors, dairy plant access platforms, brewery and winery flooring
Surface recommendation: Concave (easy-clean) or covered (liquid containment)
Resin recommendation: Isophthalic polyester or vinyl ester
Standards: FDA-compliant resin formulations available

7. Mining and Mineral Processing

Mining operations combine heavy loads with corrosive chemical exposure from leaching solutions and mineral slurries. FRP grating handles both challenges simultaneously, providing robust load-bearing capacity without degrading in the presence of process chemicals.

Applications: Leach tank walkways, solvent extraction platforms, electrowinning cell access, conveyor walkways, screen deck access, reagent mixing platform flooring
Resin recommendation: Vinyl ester for acid leaching environments
Design note: Heavy-duty grating for vehicular and equipment access zones

8. Pharmaceutical and Biotechnology

Cleanroom-compatible, non-particulating, and resistant to aggressive cleaning and sterilization agents — FRP grating meets the demanding standards of pharmaceutical manufacturing. It does not generate sparks, does not shed particles, and can be cleaned with hydrogen peroxide vapor and other sterilization methods.

Applications: Cleanroom access platforms, reactor vessel platforms, solvent storage area decking, sterile area walkways
Surface: Covered or sealed surface to prevent particulate shedding
Key benefit: Compatible with CIP (Clean-in-Place) and SIP (Sterilize-in-Place) protocols

9. Architectural, Commercial, and Public Infrastructure

Beyond heavy industry, FRP grating increasingly appears in commercial and public spaces where its combination of aesthetics, safety, and durability provides long-term value.

Applications: Shopping mall walkways, stadium and arena concourses, public pier and boardwalk decking, parking structure drainage grating, rooftop walkways, swimming pool surrounds, zoo and aquarium viewing platforms, tree grates, bollard covers
Surface: Mini-mesh for pedestrian comfort; grit-top for wet areas
Color: Custom RAL colors to match architectural design

10. Transportation Infrastructure

Bridge decking: FRP pultruded grating used as lightweight bridge deck panels — reduces structural load on existing bridges, enabling increased live load capacity. Resistant to de-icing salts.
Railway platforms: Non-conductive grating for station platforms near overhead lines. High fire performance with phenolic resin.
Tunnel walkways: Emergency egress walkways in road and rail tunnels where fire safety (phenolic) is mandatory.
Airport service areas: De-icing pad access, fuel hydrant pit covers, maintenance hangar flooring.

11. Renewable Energy

Solar farms: Non-conductive access walkways between photovoltaic arrays — eliminates electrical risk during maintenance.
Wind turbine platforms: Lightweight internal platforms that reduce nacelle weight.
Hydroelectric: Dam gate access platforms, penstock walkways, powerhouse flooring — permanently resistant to water and humidity.
Biogas and waste-to-energy: Platforms in highly corrosive biogas atmospheres with hydrogen sulfide and organic acids.

Application Selection Quick Reference

Industry	Recommended Resin	Recommended Surface	Key Requirement
Chemical Processing	Vinyl Ester	Grit-Top	Chemical resistance
Water Treatment	Polyester	Grit-Top / Concave	Corrosion + slip safety
Marine / Offshore	Phenolic	Grit-Top	Fire + saltwater resistance
Power Generation	Vinyl Ester	Grit-Top	Non-conductivity + corrosion
Oil & Gas	Phenolic / Vinyl Ester	Grit-Top	Fire + chemical resistance
Food Processing	Polyester / Vinyl Ester	Concave / Covered	Hygiene + cleanability
Mining	Vinyl Ester	Heavy-Duty Grit	Heavy load + acid resistance
Pharmaceutical	Vinyl Ester	Covered	Cleanroom compatibility
Commercial / Public	Polyester	Mini-Mesh	Pedestrian comfort
Transportation	Phenolic / Polyester	Grit-Top	Fire rating + durability

For a detailed assessment of your specific application requirements and a custom FRP grating recommendation, contact our technical team. We provide free engineering support, including load calculations and chemical compatibility analysis.
