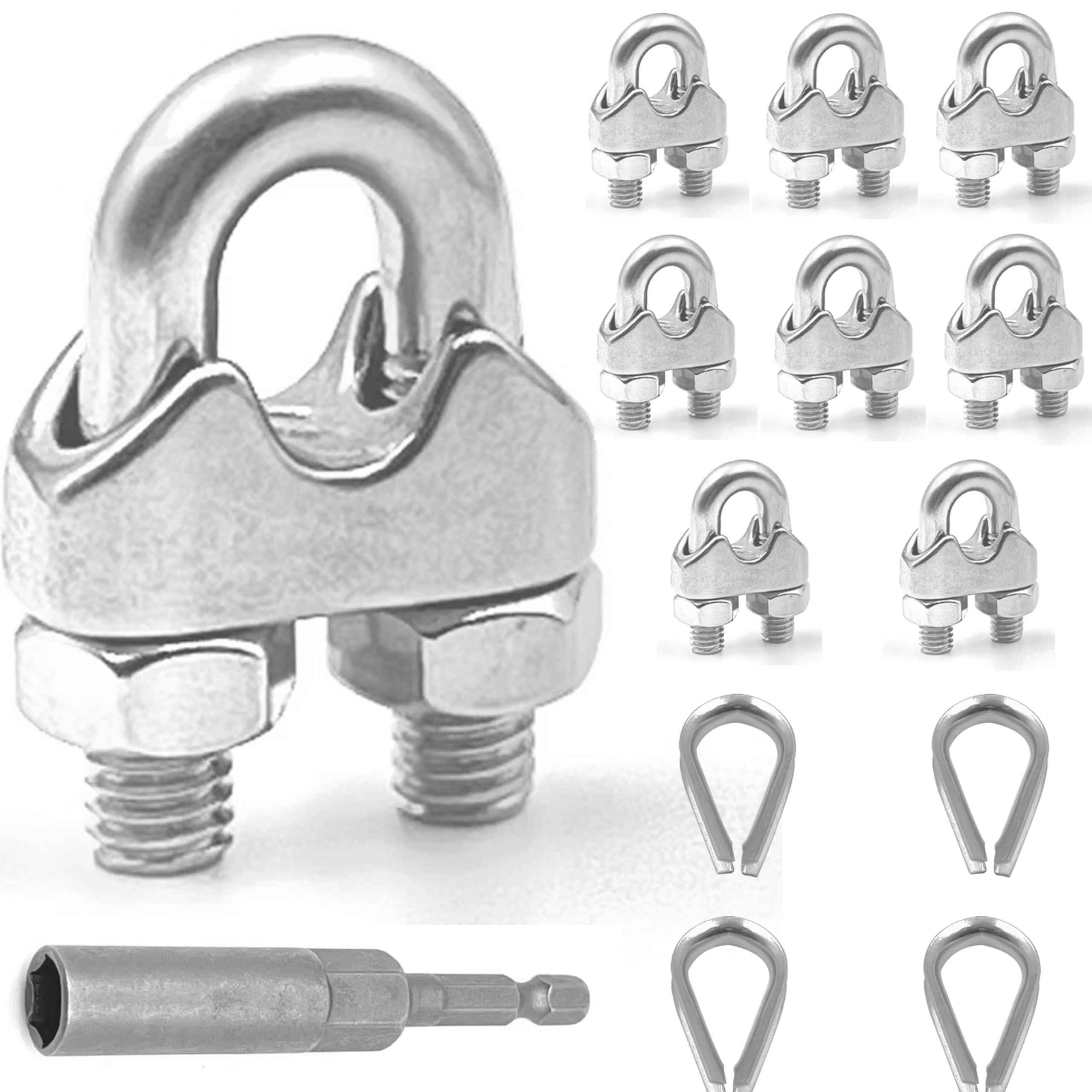

Wire rope clips — also called cable clamps or U-bolt clamps — are the workhorse fastener for terminating wire rope loops and end-to-end splices. Hilink stocks AISI 304 and 316 stainless steel wire rope clips in DIN 741, JIS, Italian, US forged, and US malleable types. Every clip is precision-threaded and matched to industry-standard drop-forged saddles for a secure, reusable grip on the rope.
Wire Rope Clip Types

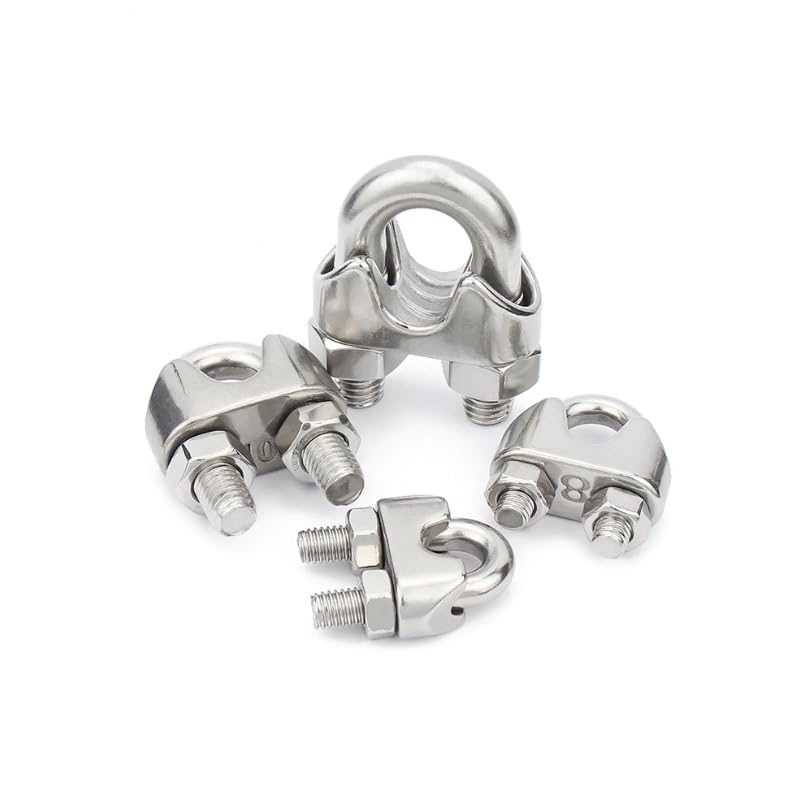

- DIN 741 Standard Clip — the most common European clip, with two saddle plates and a U-bolt. Sizes 3 mm to 40 mm rope diameter.
- JIS Standard Clip — Japanese Industrial Standard, hex-nut U-bolt, similar to DIN 741 but with metric fine thread.
- Italian Clip (Fist Grip) — single-saddle, drop-forged for permanent terminations.
- US Type Forged Clip — heavy-duty drop-forged saddles, sized in fractions of an inch, 1/8″ to 1-1/2″ rope.
- US Type Malleable Clip — cast malleable iron for light-duty, low-cost applications.
- Duplex Clip (Double Saddle) — for high-vibration or critical load terminations.
How Many Clips Do You Need?
Industry best practice (per DIN 1142 / FF-C-450):
- Minimum 3 clips per termination for ropes up to 25 mm
- Minimum 4 clips per termination for ropes 25-40 mm
- Minimum 5 clips per termination for ropes over 40 mm
- Spacing: 6× rope diameter between clips; first clip 1× rope diameter from the dead end
- Always apply correct torque — overtightening damages the rope
Material Specifications
- AISI 304 stainless — general purpose, indoor / non-marine
- AISI 316 / 316L stainless — saltwater, marine, chemical exposure
- Hot-dip galvanized mild steel — industrial and structural use
- Working load limit marked on each clip body for traceability
Applications
Stainless steel wire rope clips are used in:
- Architectural cable railings — terminating balcony and staircase cable runs
- Shade sails and trellises — corner hardware for tensile fabric structures
- Marine rigging — lifeline terminations, halyard end fittings
- Industrial lifting — sling assembly, hoist termination
- Agriculture — vineyard trellis wires, fence tensioning
Why Choose Hilink Wire Rope Clips
- Five clip types in stock — DIN, JIS, US forged, US malleable, Italian
- Drop-forged saddles for high pull-out strength
- Match-tested U-bolt threads, no galling on stainless
- Custom packaging with your barcode and brand
Request a Quote → Tell us rope diameter, clip type, material, and quantity. Bulk pricing within 12 hours.
