Hilink introduces a complete stainless steel cable railing system — a one-stop solution for residential decks, commercial stairs, and architectural facades. The system uses tool-free swageless terminals, adjustable turnbuckles, and 1×19 stainless cable. Install in minutes, no swaging tool needed. Pre-engineered for safety compliance on residential and commercial guardrails.

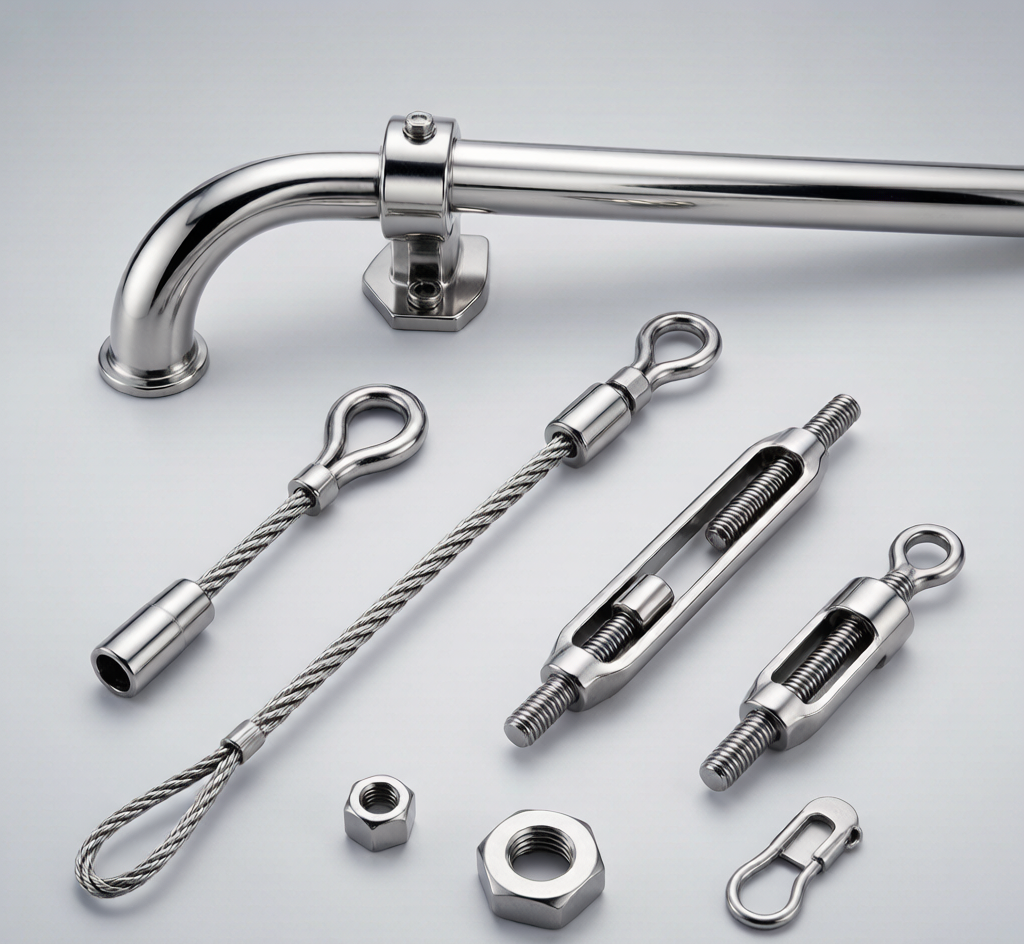

System Components
- Swageless Terminal (Push-Pull Lock) — tool-free cable termination, hand-tighten to install. Field-replaceable.
- Swageless Terminal (Pull-Lock) — for permanent terminations, smooth dome profile.
- Adjustable Turnbuckle — fine-tunes cable tension after installation. Jaw or fitting end.
- Stainless Cable — 1×19 strand, AISI 316, diameter 3 mm to 8 mm, mill coils or pre-cut lengths.
- End Caps, Washers, Posts — completes the railing assembly.
Why Swageless?
Traditional cable railings require a hydraulic swager to crimp the terminals onto the cable. Swageless terminals use a wedge or collet mechanism that grips the cable as tension is applied — no special tool, no swager rental, no power source on site. The result is a clean installation that any contractor or DIY homeowner can complete in an afternoon.
Material & Specifications
- All metal components: AISI 316 marine-grade stainless steel
- Cable: 1×19 or 7×7 strand, 3 mm / 4 mm / 5 mm / 6 mm / 8 mm
- Load rating: 1.5 kN to 6 kN depending on cable size
- Finish: brushed satin, mirror polish, or black PVD coating
Applications
Stainless steel lifeline and cable railing systems are used for:
- Residential decks and balconies — modern, minimalist guardrail aesthetic
- Staircases and mezzanines — code-compliant safety rail with view-through design
- Architectural facades — vertical or horizontal cable screens on commercial buildings
- Marine lifelines — boat deck perimeter safety lines
- Public spaces — parks, viewing platforms, walkways
Installation Advantages
- No swaging tool required
- Field-adjustable tension with turnbuckle
- Components can be reused if you change layout
- Compatible with wood, metal, and composite posts
- Pre-cut cable lengths available — specify at order
Why Hilink Lifeline System
- Complete system — terminals, turnbuckles, cable, accessories from one supplier
- 500+ SKUs, container-load stock for fast shipment
- Free samples for evaluation
- OEM/ODM packaging, custom cable cuts, and technical support
Request a Quote → Tell us your project — number of runs, cable length, post material. We provide a complete materials list and pricing within 12 hours.
